15 Feb 19 Challenges at the paint shop

I popped over to Gavin’s paintshop to deliver the front grille which he wanted so he could do a trial fit. Things are never simple, I found the grille brackets but as I had needed to cut bolts off, they weren’t in good shape so I had to order them new, along with door rubbers (I was going to buy new anyway) and the little rubber pads which go on top of the wings to support the bonnet. All these parts are needed so that the guys can check for panel fit before they commit to paint. I ordered the parts from a supplier new to me, who seemed okay, but they were unwilling to deliver straight to the paintshop (unlike Moss), so I will have to make another delivery drop next week. Nuisance.

Anyway, that was just the start of the worries since Gavin wanted to discuss a few challenges he was facing with the MG at the moment. Lets break them down into topics:

  1. Valance fit
  2. Passenger door fit
  3. Rear lamp fit

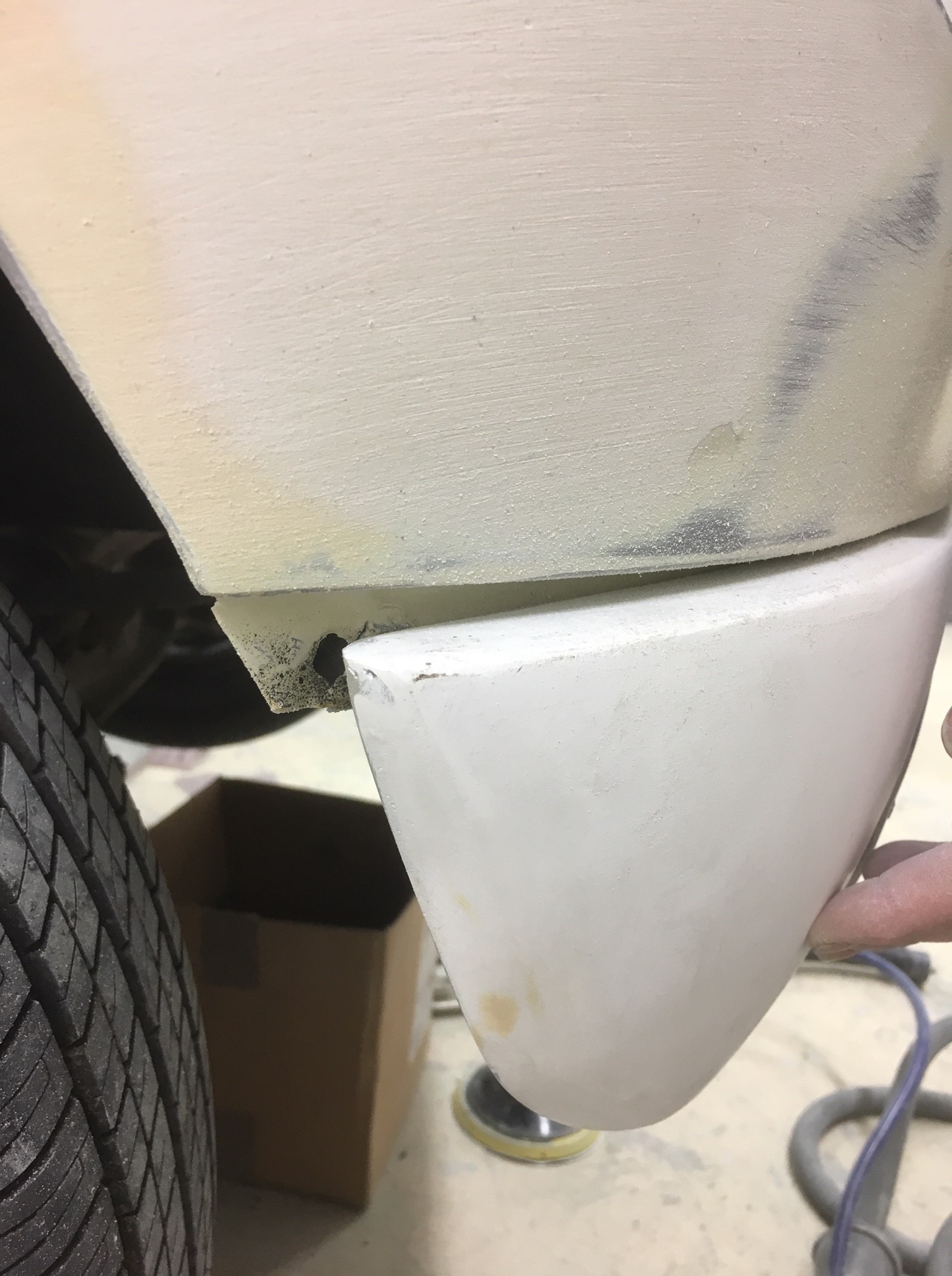

Valance – I had ordered a fibreglass ‘Sebring style’ valance from Moss and this has proven to be a difficult fit. See the pictures below which show that when offered up to the MG its short on one side by about 1 inch.

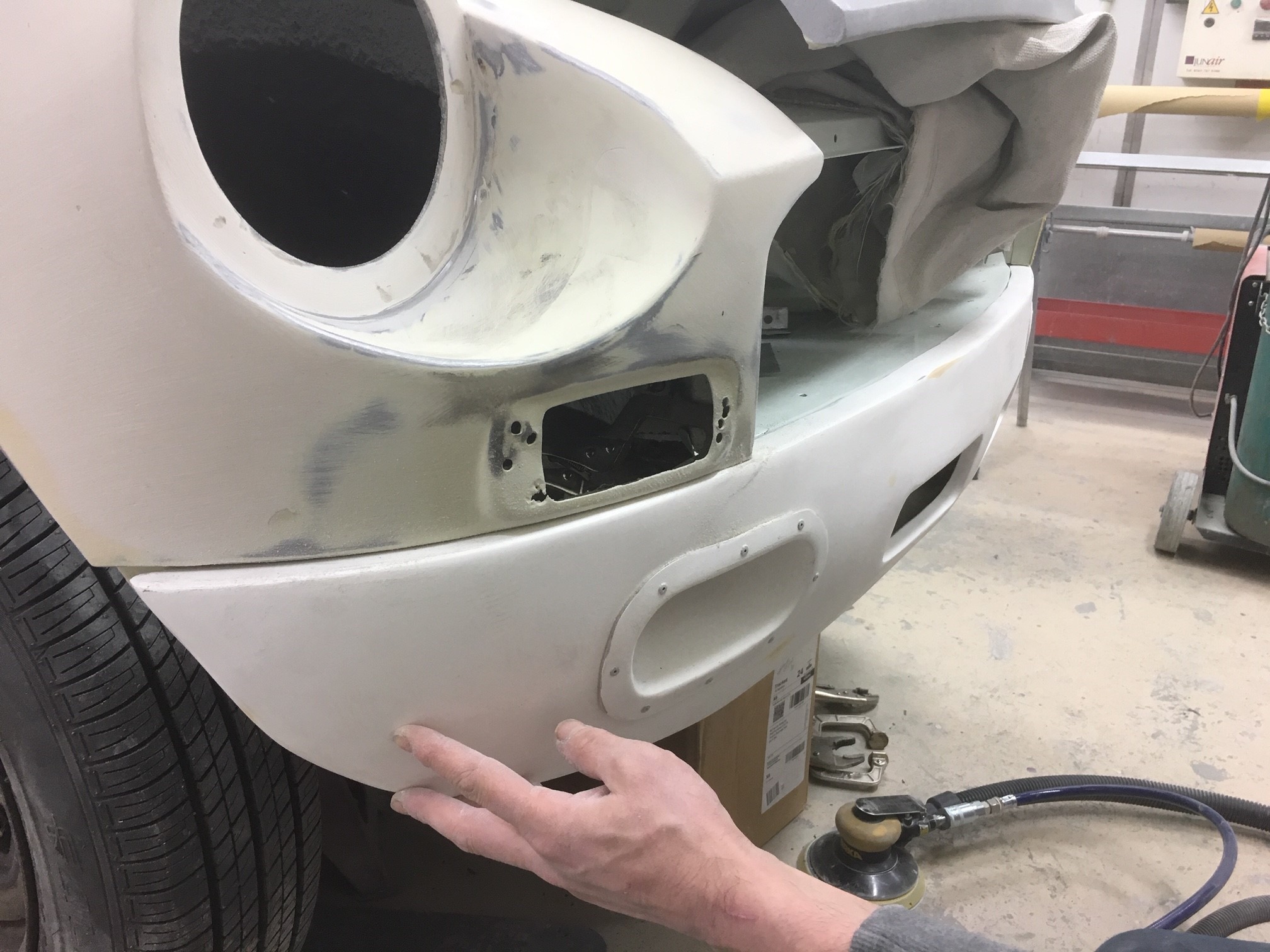

Close up of the valance

I agreed to ring Moss and to give them their due they have offered to refund the part (subject to Management confirmation) on return. This however has left me in a dilemma – do I buy another Sebring style valance from another Supplier (they are available)? Do I buy the posh product from Frontline which you would hope would fit, or do we modify the Moss one to fit? On the FB group there was a suggestion that you can chop it in half, make each end fit, and then fill any gap with fibreglass. Or do I even just put the bumpers on with a standard valance? (but I did always want the bumperless look…)

Passenger Door Fit. Now that the doors and wings have been on and off, Gavin was finding that the passenger door gaps were tight even with everything at maximum adjustment. On measuring the gap between the A and B post he found there was a 5mm difference from n/s to the o/s. After some speculation about BL build quality (but surely they were right from the factory), we guessed that perhaps the body wasn’t perfectly straight when the new floors were welded in prior to my ownership. Anyway, Gavin is going to try to work with what he has got and make it as good as possible.

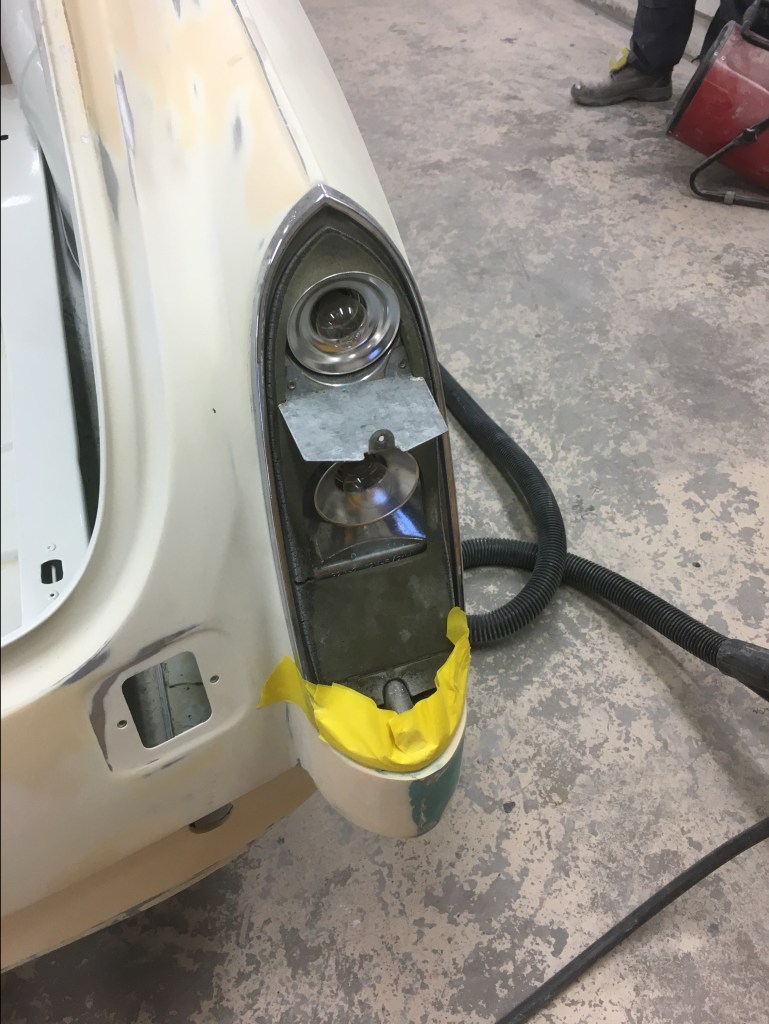

Rear Lamp Fit. This is an annoying one. The back of the rear wing curves nicely around the rear lamp on the MGB. Its a nice detail on what is a elegant car. Unfortunately, on my MGB, there is a lip on the o/s and the lamp is flush on the n/s. Another poor repair. I’ve agreed with Gavin that it needs to be right and the rectification isn’t too difficult, just some cutting folding and re-welding.

The value of trial fitting – the lip around the rear light shouldn’t be there and wouldn’t have been known without checks

So this is not as straightforward as I thought, but then who ever said a car restoration was easy. I think the end result from Reef Paintshop is going to be superb, so a great basis for the remainder of the build.
