30 Dec 19 Fuelling around

A good amount of time on the MG today. After dealing with the ironing pile (yes), I pushed the MG out into the winter sunshine and got stuck in. I warmed up first by fitting the rubber bung (or grommit if you prefer) over the hole in the transmission tunnel which is used to access the gearbox filler. This was stiff as hell, but a bit of soap helped it into place.

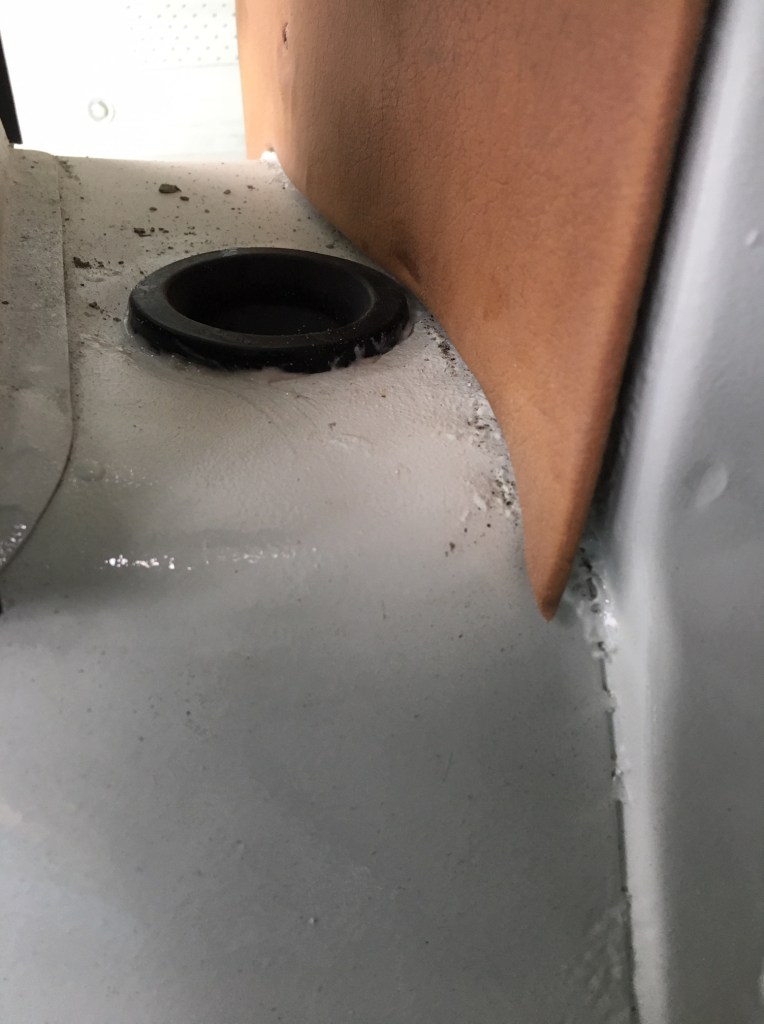

The tight space within which to manouvre the grommit into place

I then jacked up the o/s so I could access the fuel pump which I am sure you are all fed up hearing about. Well the good news is that it is now fitted snugly into its clamp, the wiring loom connections are on and the rubber pipe which connects the pump to the copper pipe under the car is fitted. So hurrah! It was a bit of a faff, but all it needed really was a bit of patience and perseverence. I think Mum-in-law’s Christmas cake may also have helped as I used the last slice to sustain me.

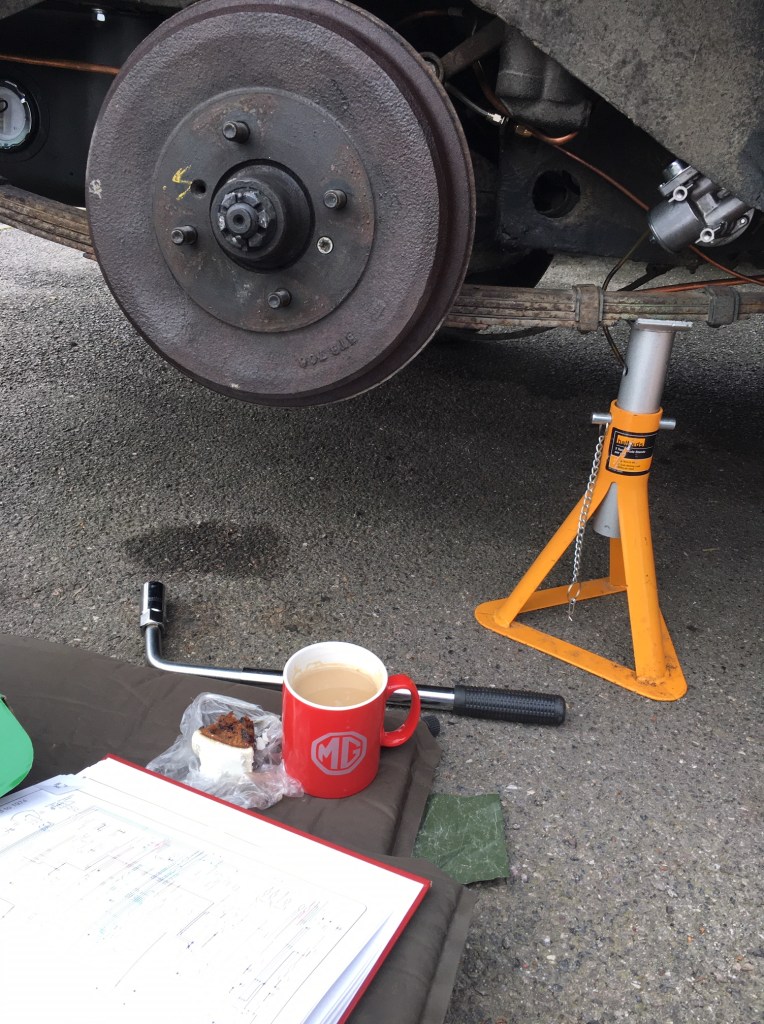

What’s better than cake, coffee and classic cars – don’t answer that!

I later spent some time routing the copper pipe around the engine bay. I wasn’t aiming for final fit, I just wanted to route it some more and try to figure out how to connect the fuel line to the carburettors. I have posted an enquiry to a FB group on this now, so just waiting for replies so I can finish this off [Post Blog note – response received, the mystery fittings are the overflows – who knew? I’ll need to buy some more pipe for these]. I did fit the fuel filter, so this is definately progressing.

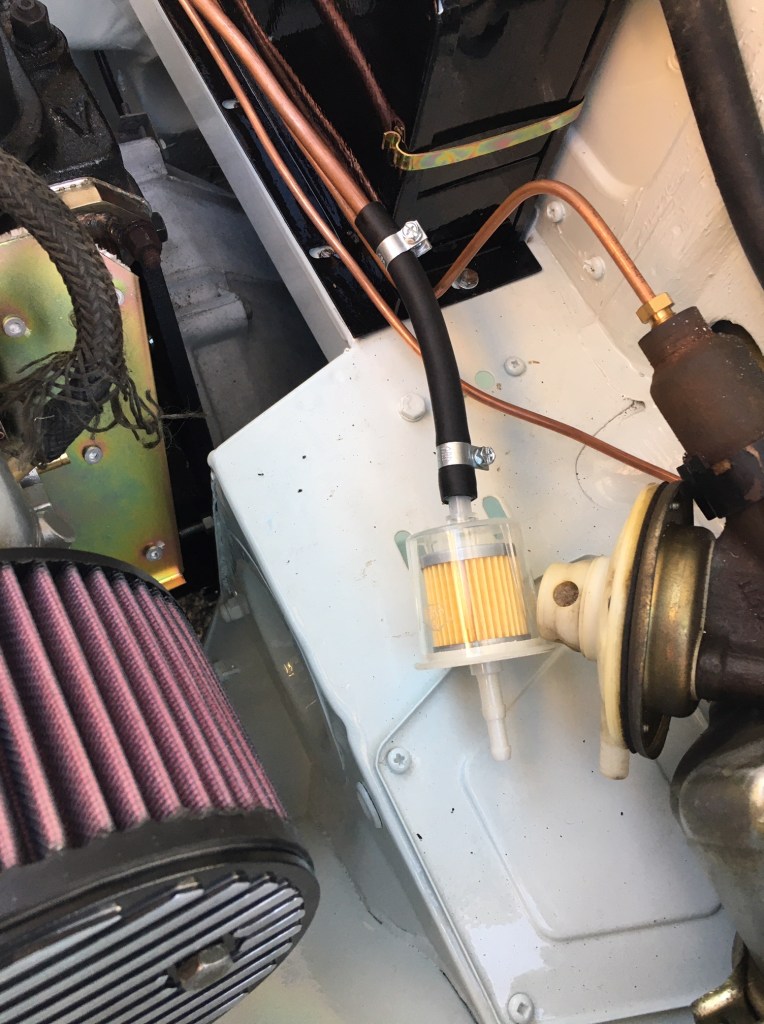

The fuel filter fitted – just the last length to the carbs to sort out now

With the car jacked up I was able to connect the wiring loom to the starter motor, one more job towards my engine start milestone. This was easier than it looked with as usual the loom falling easily to hand and some helpful guidance on the interweb as to what goes where.

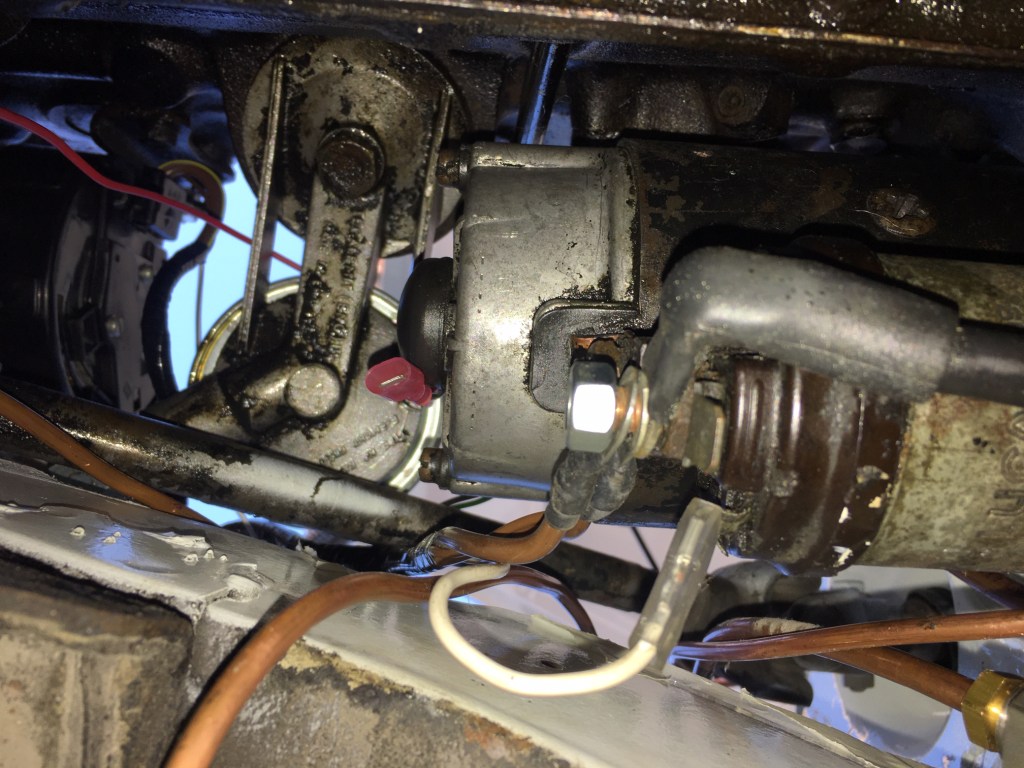

End of the starter motor showing the connection locations

I then turned my attention to troubleshooting the pesky alternator bolt which had sheared recently when I was attempting to tighten the fan belt. Good news folks, I was able to undo the bolt from the other end. I had anticipated having to use a stud extractor or some such, but I hadn’t realised it would be so easy. I do need to replace the adjusting pillar as its called because its a special item and I dont have any long enough bolts to put anything in temporarily. As ever, the SC Parts catalogue is well illustrated and shows the part clearly. I will probably order from Moss though, sorry SC! Sorting the alternator is critical to the build as not only does it need to be working, but I want to be certain its on right before I commit to fitting the radiator which will be largely in the way of it once fitted.

Having gone as far as I could go without answers from FB and ordering new parts I had a go at installing the wiper mechanism. This is semi-critical to engine start as it is better to have this all installed prior to the fascia being re-fitted because its easier to access. This should have been an easy job, but I was thwarted by what is either a parts misorder or pattern parts being different to the original. Briefly, there is a chrome collar which sits over the wiper drive rod and this sits on a rubber collar chamfered in the opposite direction so they fit nicely together. Except they didn’t. On inspection of the original vs. new part, the new chrome collar was significantly longer, so I could not get the securing nut to bite on the threads. I have ended up re-using the pitted old collars and will investigate further what this is all about. What I have learned in this process, is that if it isn’t fitting, then something is wrong. I have learned not to be frustrated or to attempt to ‘make it fit’ as that ends in disaster. While doing this job, the chrome collar fell down the vent in the scuttle panel. ‘Ha ha’, I said to myself, ‘I ‘ll get that easily enough.’ Mmm. It had fallen in an awkward place and my trusty magnetic tool pick was having no effect as the item was not magnetic. Hmm, time to thing again, so I went to open the inner vent which these particular MGB have under the fascia. But the vent it blocked by the half fitted wiper mechanism cable which is dangling in the way. So I have to release that to get to the vent opener, to allow me to scrape my knuckles putting my hand through the vent into the duct to retreive the collar. Then I did it again when I fitted the other side. Sigh. At times like this, I am sure the MG has a sense of humour. To prevent further incident I fitted the grille which goes over this vent AND the mesh that goes underneath.

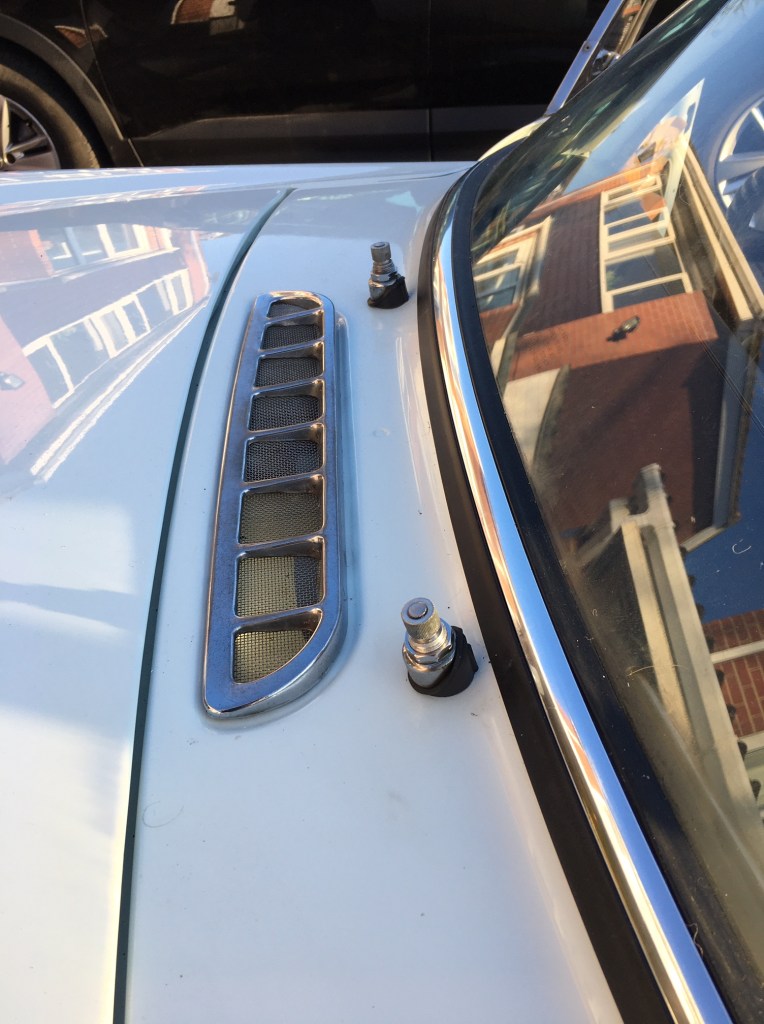

The wiper mechanism – it looks fitted at least

So that was most of the day, I did also stick a washer and a nut on a bolt which secures the steering rack. For some reason Gavin the painter hadn’t wanted to fit that one, but with my box of nicely sorted imperial nuts, I was able to sort that out while I was there.

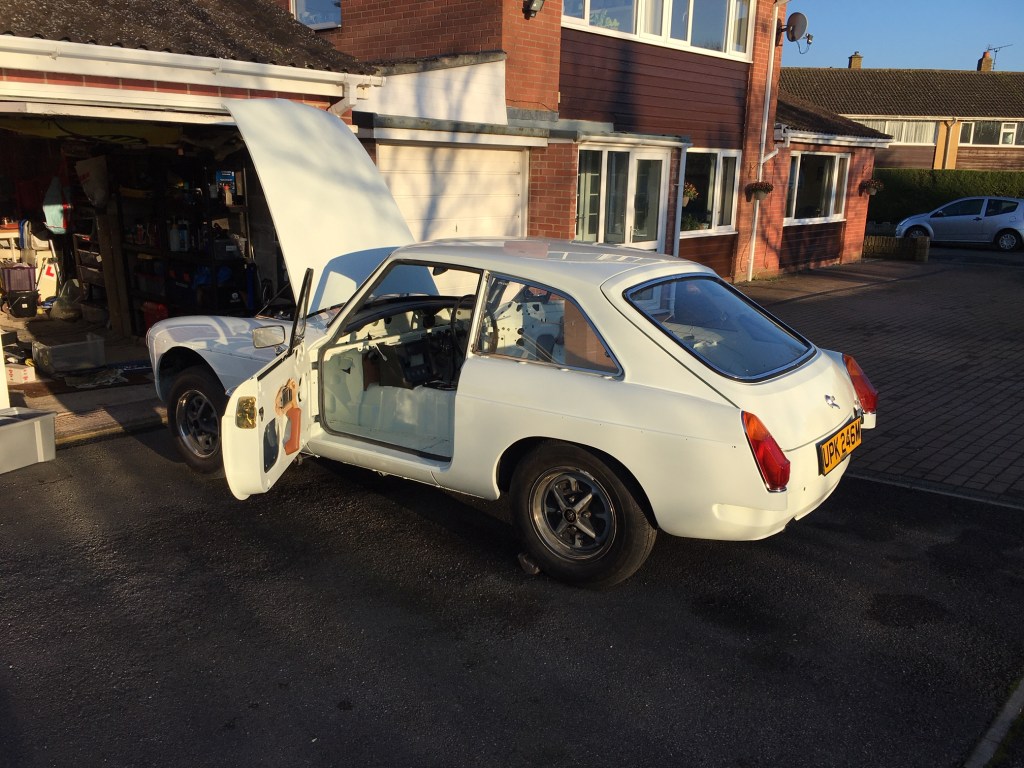

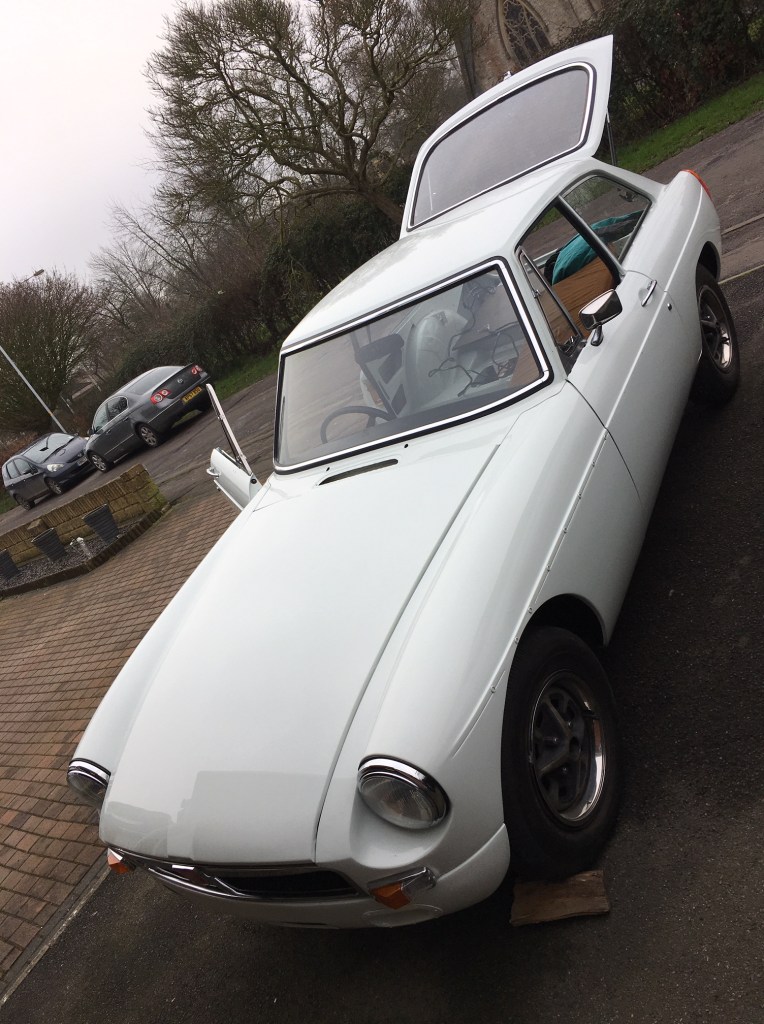

It was a really beautiful day today. Sunshine all day long and I had ages on the car. I took some photos of the car on the driveway, just because it looked so good in the low winter sun. Hope you enjoy them below.

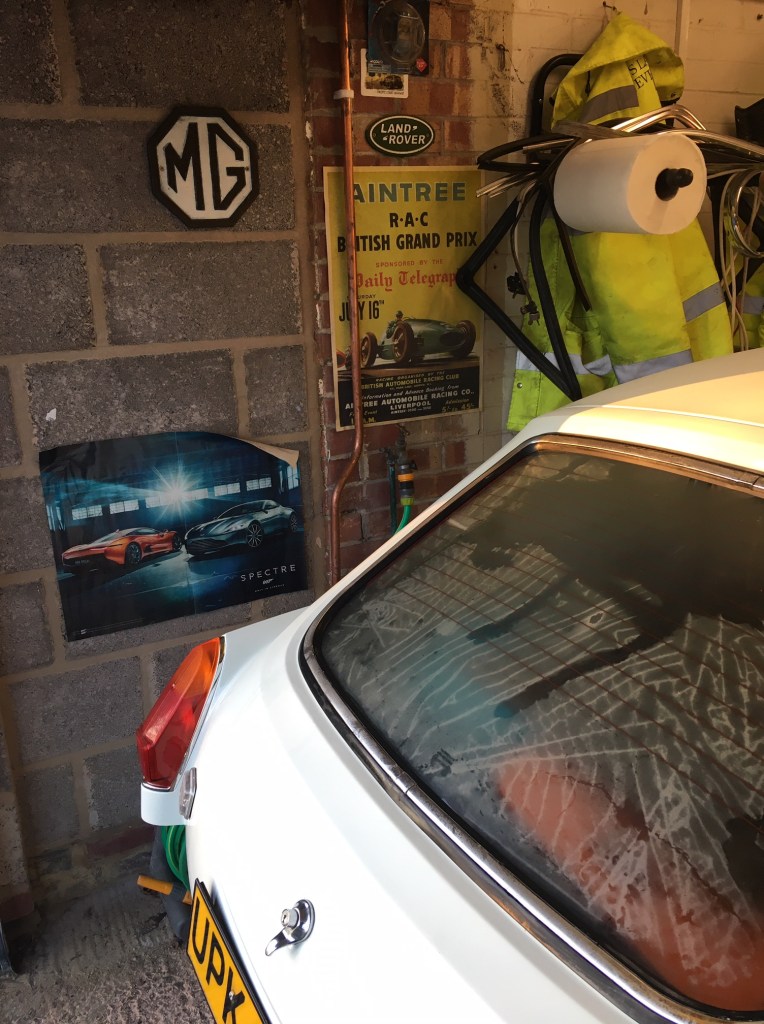

Two things to finish off the day – first, hanging the MG wall plaque on the garage wall – a present from a colleague and my Mum – they both bought me the same thing! Secondly, a quick blast in our Suzuki Cappuccino. As it was a dry day, with no salt on the roads, it was too good an opportunity not to have a quick sprint up to the motorway and back. The Cappuccino gets light use all year round, but I am choosy when I take it out in winter due to its vulnerability to corosion. It was a nice way to end the day with the light just fading, the sky tinged with pink and 8500 on the tachometer.

MG – the legend lives on!
