6 Apr 2020 External trim

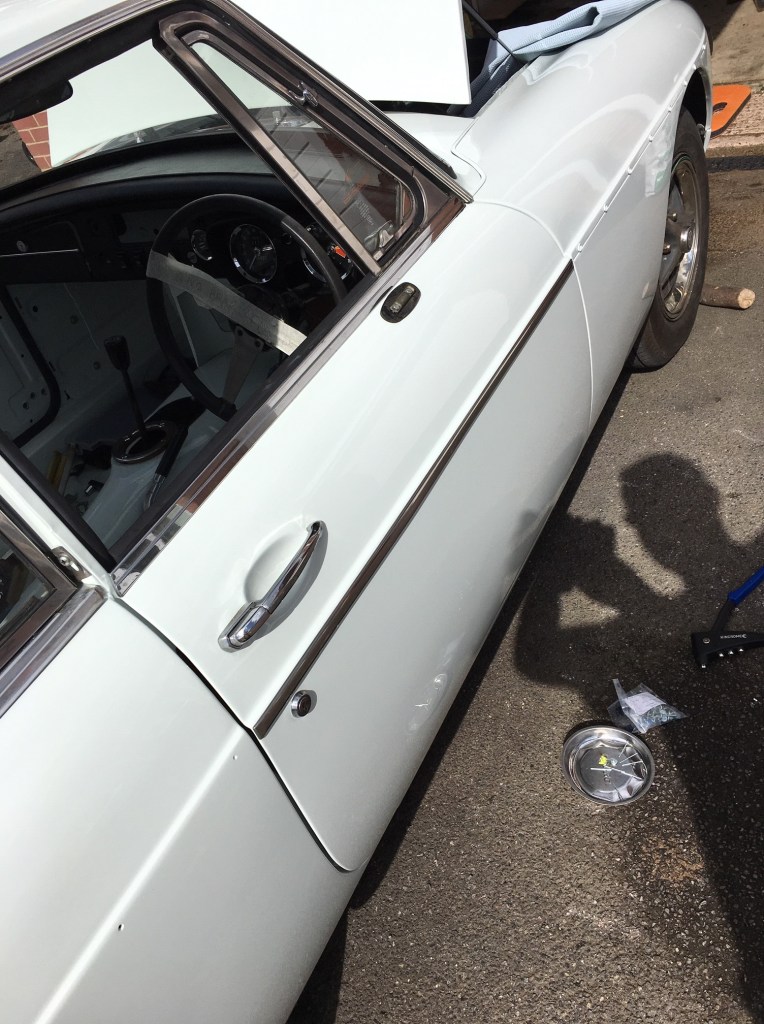

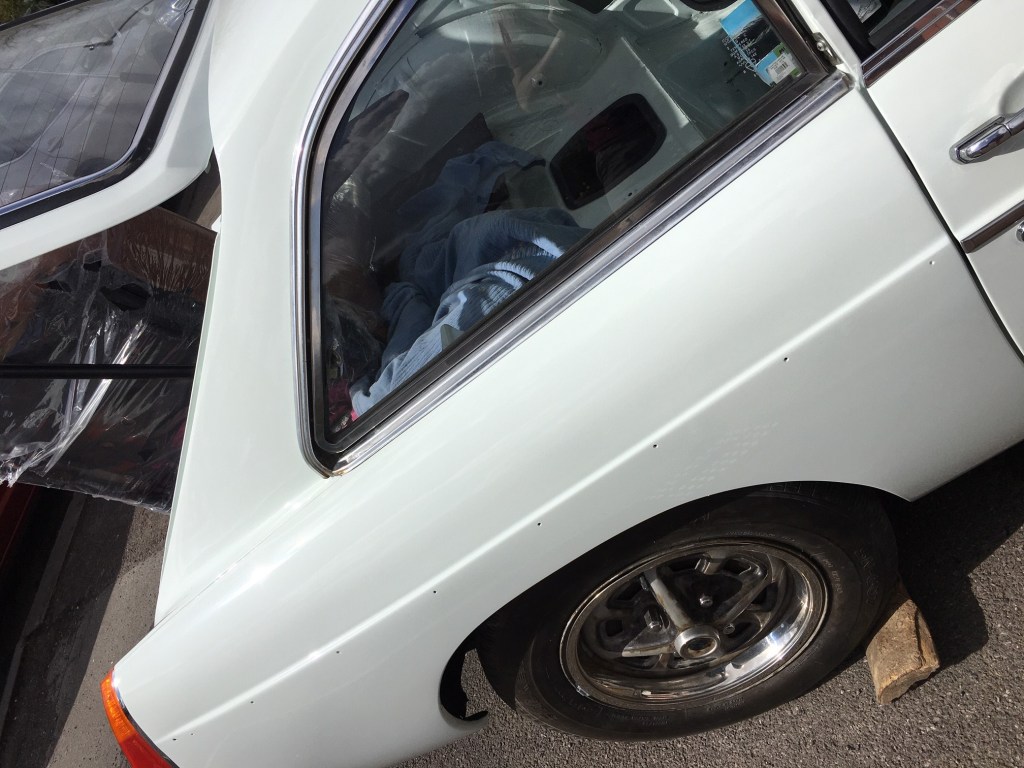

I am writing this a week later that it was done, so apologies for my tardiness. I spent a lot of time on this long weekend (Monday off) working on the MG, mainly fixing the external trims. The MGB is blessed with a striking stainless steel trim which runs down both sides, made up on three pieces, front wing, door and rear wing. Each trim snap fits onto a number of round fittings which are pop rivetted into the bodywork plus one screw plate per panel. The pop riveting went reasonably well, except that a couple of holes were too big for the pop rivet to take and so I had to miss these out. The o/s rear had a mislaigned hole so I had to miss that one out too. The front wing screw fittings needed to be drilled and I had a mixed experience with this. The n/s wing drilling went reasonably well – aligned well on the horizontal plane, I didn’t really get it far enough forward to completely pull the trim in. So learning this lesson on the o/s wing, I drilled further forward and although perfectly aligned for the trim, the thread came through next to a seam on the inner wing so I couldn’t fit the washed and nut. Annoyingly I had to leave the job partly done. Worth mentioning that the trims snap on nicely if you smack them sharply with the heel of your palm. Okay for the first couple of trims, but a bit painful by the end of the day.

As an aside, I had planned a load of jobs for this weekend, but was frustrated by lack of parts, particularly the seats which are frustrating me with a lack of clear information on how they are fitted and not having all the parts I need [sigh]. I did manage to fit the crush washer to the Oil Cooler pipes. This joint had been leaking oil and then I found the washer in a parts bag. Not doing much good there was it! Now its fitted I no longer have the oil leak, just the stain on the driveway to remind me of my error. Onwards and upwards

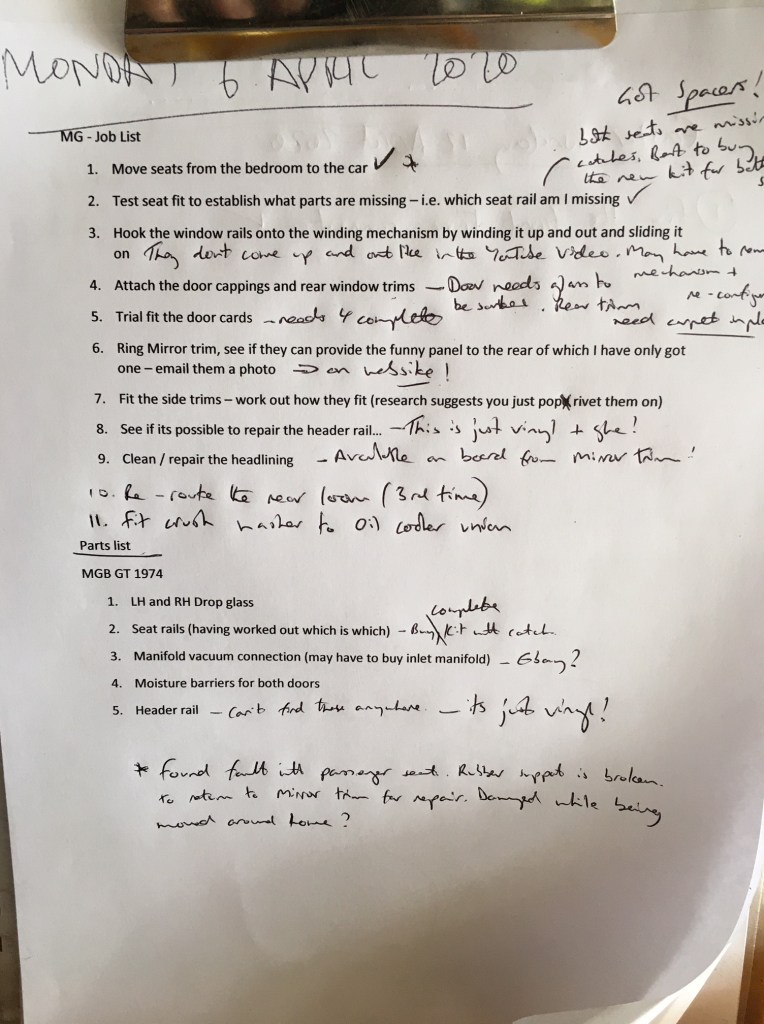

My list of jobs – I didn’t get too far!

2 thoughts on “6 Apr 2020 External trim

  1. Hi Adam – Good to see your progress on the MG. Regarding the rivet holes being too large, try putting a suitably sized washer to the rear of the panel, push the rivet through and hey presto! (Assuming the rivet is long enough….) Should pull up nicely! Good news about the oil leak as well – although when I came to fit the hoses on mine yesterday, the were for the wrong year (mine is a 67) so I have a set of spare chrome bumper hoses for sale! Regarding your lack of oil pressure, try priming the oil pump by pouring some oil into the pump via the union on the block adjacent to the distributor. Should do the trick. Rgds – Nick.

    Liked by 1 person
