14 Mar 2020 Electrical Issue

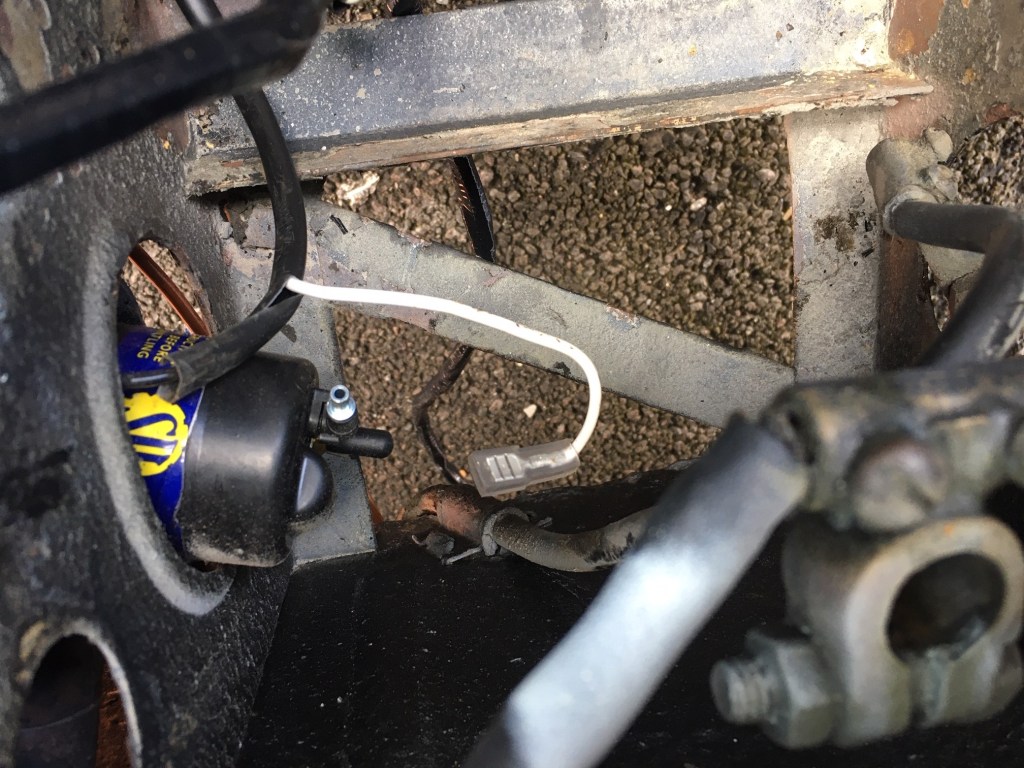

So today was looking good to get the MG started. I borrowed a fuel bottle from my friend John and made a list of what I had to do. First job was to connect up the oil gauge pipe. This was relatively easy although now I look back at it, I have routed it through the same hole as the temperature gauge pipe so that will need re-routing – doh! Second was to disconnect the fuel pump because I was going to use a fuel bottle to feed the carbs, not the fuel tank (not wanting to leave fuel in the car for a long period). I also placed a bolt in the inlet manifold in lieu of not being able to connect the vaccum advance hose. I haven’t been able to work out how this works to date, but I figured the MG could start without the pipe in place. So far so good. I then attempted to connect up the ignition switch which proved to be more difficult than I had imagined because the terminal were not clearly marked so I had to guess which was which. I connected the switch in what I assumed was the correct way and proceeded to connect the battery. This is where things began to unpick somewhat. Dad has given me a foolproof way of testing the loom before proceeding to connect the battery. This involved using a test lamp and the idea was that if the light came on, the loom was not correctly connected in some way and had a ‘dead short’. Anyway I performed the test and the light came on, but I proceeded to connect the battery. On connecting the positive terminal, the cable and terminal sparked violently and started to weld themselves together. Okay so something not right here. So I abandoned the MG for the day, posted a query on Facebook and made a mental note to call Dad later.

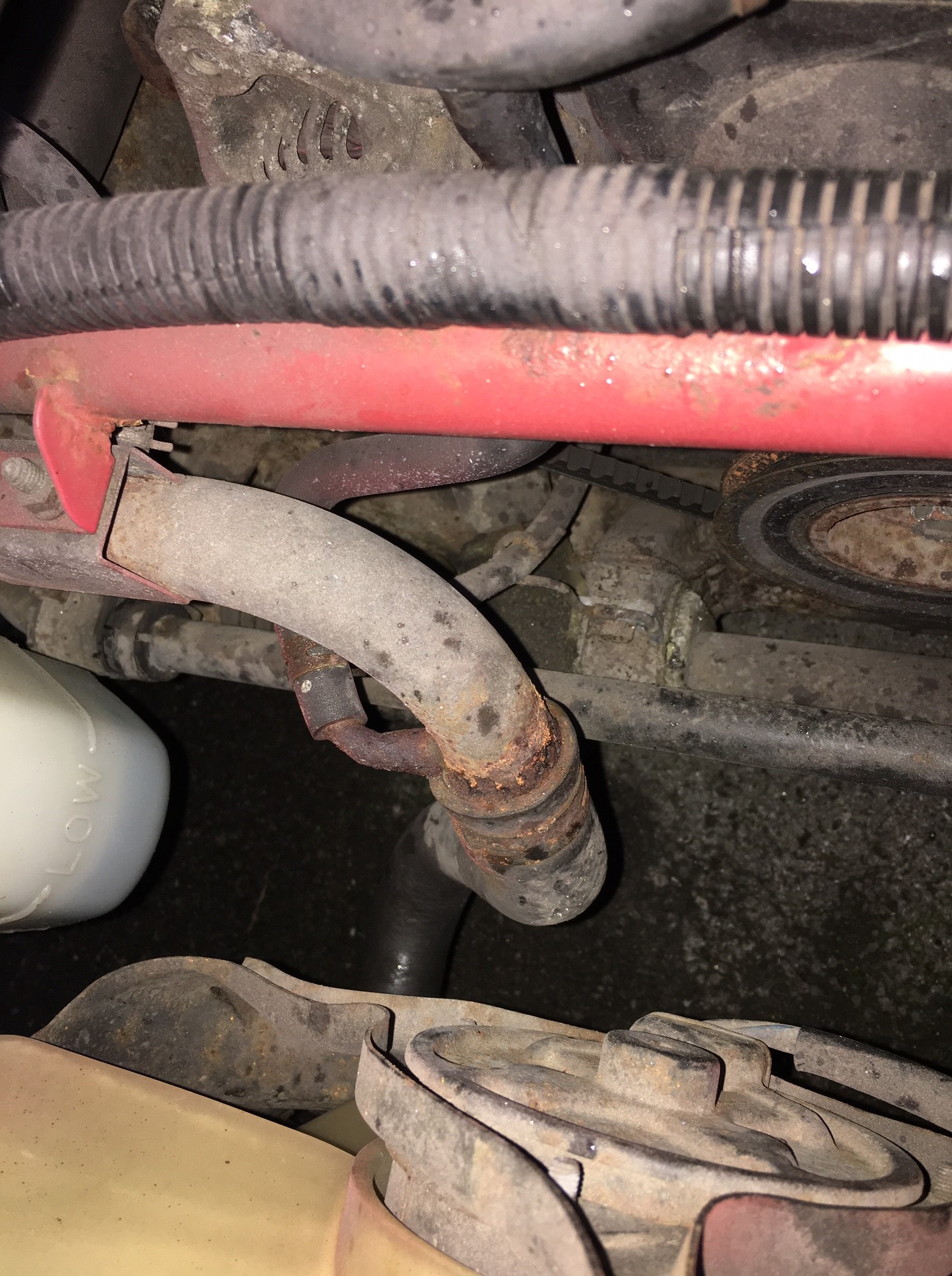

I moved on to the Suzuki Cappuccino, my other ‘toy’ on which I needed to replace a corroded metal cooling pipe. I had bought a new pipe from Suzuki recently, for the princely sum of £50 (!) and thought I would get on with the job today as it was dry and I had come to a dead halt on the MG. There were five hose connections to this pipe and each of course had to be undone. Due to the angles, this proved challenging. The clips were those springy ones that you have to either have fingers of steel (I have soft office hands) to open or manouvre a pair of pliers to release them. It was a tedious process to get them all undone and even then the hoses were a swine to get off. I used my trusty heat gun to soften up the rubber and this worked really well. I managed to catch a lot of the antifreeze which poured out into my waste oil container. I then fitted the hoses to the new pipe using new jubilee clips and secured it to the bracket with two nuts. I took the opportunity to wash the overflow bottle and hoses while I was there and then filled the radiator with fresh ready-mixed antifreeze. I then took the Cappuccino for a road test during which I definately didn’t taunt a sleeping Mini Cooper, nor did I exploit the perfect 50:50 balance to zap around a couple of local roundabouts. That definately didn’t happen. All was well and after the Cappuccino had cooled, I topped up the radiator a little. I’ll keep an eye on the levels for the next few drives, but it was good to get this job done.

4 thoughts on “14 Mar 2020 Electrical Issue

  1. Hi Adam – I’m also connecting up a new loom as part of my rebuild. Can you share the foolproof tip from your Dad which protects the loom before connecting the battery? The last thing I want is a dead short / melted wiring / fire when it’s time to press the ‘go’ button…….

    Like

    1. Hi Nick, you connect the earth terminal, thenuse a test lamp between the battery and the positive cable. If you get a light then you have a dead short ‘cos there is a current flowing. Stop and resolve. Have you got a picture of ignition switch terminals?

      Like

      1. Hi Adam – thanks for the tip on avoiding wiring shorts. On the subject of the ignition switch, if you go to bentley.com and search the wiring diagram for your year of car, that should help. I have taken a picture of my ignition switch, but it’s for a 1967, which I don’t think will help much. Let me know the best way to sent a photo and I send it anyway for your information. Nick

        Like
